Zubehör

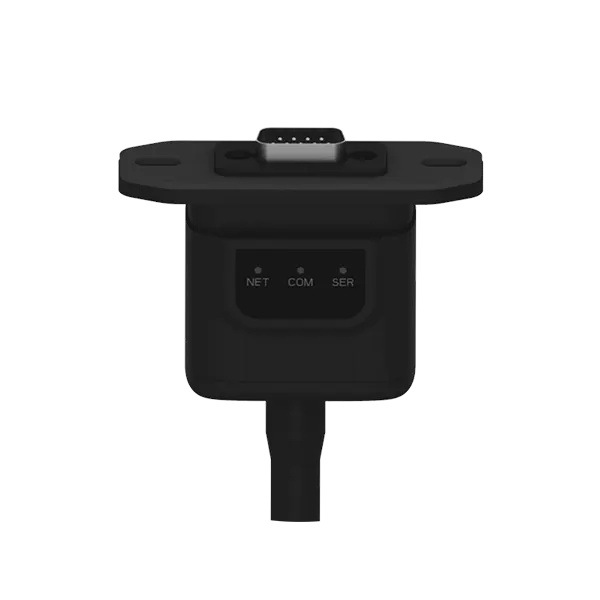

Stick Logger
| No. | Produkt | Beschreibung |
|---|---|---|
| 901.00000020-0 | Ethernet Stick LSE-3 (DB-9) | for monitoring single SOFAR inverter generation G1 and G2, and SOFAR 1100…3300-G3 |
| 901.00000060-1 | Ethernet Stick LSE-3 (USB) | for monitoring single SOFAR inverter generation G3 / HYD 3PH |
| 901.00000034-1 | WiFi Stick LSW-3 (DB-9) | for monitoring single SOFAR inverter generation G1 and G2 |
| 901.00000047-1 | WiFi Stick LSW-3 (USB) | for monitoring and control single SOFAR inverter generation G3 /HYD 3PH |
| 901.00000041-2 | GPRS Stick LSG-3 (DB-9) | for monitoring of single SOFAR inverter generation G1 and G2. Card slot version, without SIM card |
| 901.00000049-0 | GPRS Stick LSG-3 (DB-9) | for monitoring of single SOFAR inverter generation G1 and G2. Card slot version with Europe SIM card. Data service "Option 2" has to be ordered seperately! |
| 901.00000055-1 | GPRS Stick LSG-3 (USB) | for monitoring of single SOFAR inverter generation G1 and G2. Card slot version, without SIM card |
| 901.00000042-0 | LTE Stick LS4G -3 (USB) | for monitoring of single SOFAR inverter generation G3 and HYD 3PH. Card slot version, without SIM card, suitable for Europe and Australia |
| 901.00000052-0 | LTE Stick LS4G -3 (DB-9) | for monitoring of single SOFAR inverter generation G1 and G2.Card slot version, without SIM card, suitable for Europe. Supports SIM cards from Poland: Play, Plus, T-Mobile, U-Orange |
| 901.00000062-0 | LTE Stick LS4G -4 (USB + Data Service) | for monitoring of single SOFAR inverter generation G3 and HYD 3PH.Card slot version, with SIM card and Data Service for 5 years in Europe (Albania, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Kosovo, Latvian, Lithuania, Luxemburg, Maltese, Montenegrin, Netherlands and northern Malaysia, Poland, Portugal, Romania, Russia, Serbia, |

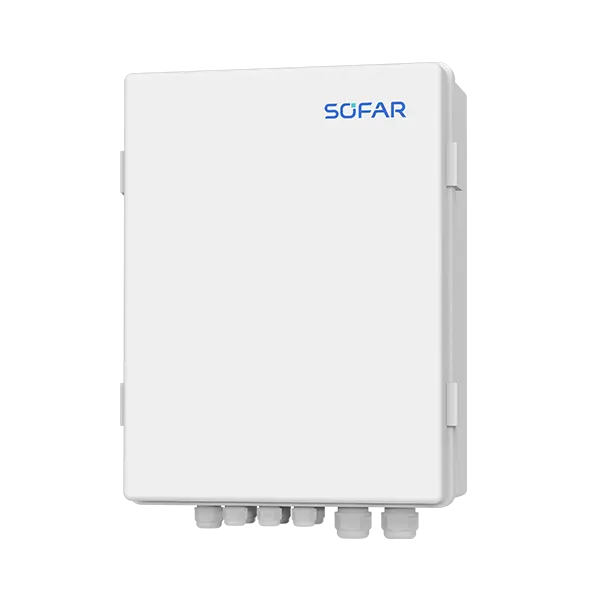

Power Control
| No. | Produkt | Beschreibung |
|---|---|---|
| 901.00000114-0 | Smart Feed-in Limit Box (up to 10 devices, V2) |
for up to 10 SOFAR inverter Communication method: 2.4G WiFi+Ethernet Included: air switch, 2 x 3-phase meter, rail power module, rail data collector (WiFi/Ethernet), waterproof housing Note: Users need to equip their own CT's (5A) |

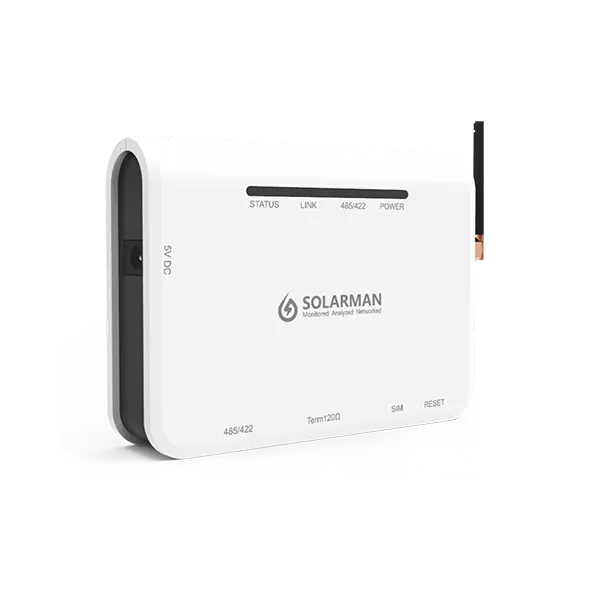

SolarMAN Datalogger
| No. | Produkt | Beschreibung |
|---|---|---|
| 901.00000025-0 | DIN Rail Datalogger (up to 4 devices) |
Datalogger to connect up to 4 SOFAR inverters or SolarMAN Smart Meter to the SOLARMAN portal Communication method: WiFi/Ethernet Supports connection of four inverters (or enery meters) |
| 901.00000024-0 | DIN Rail Datalogger (up to 8 devices) |
Datalogger to connect up to 8 SOFAR inverters or SolarMAN Smart Meter to the SOLARMAN portal Communication method: WiFi/Ethernet Supports connection of eight inverters (or energy meters) |

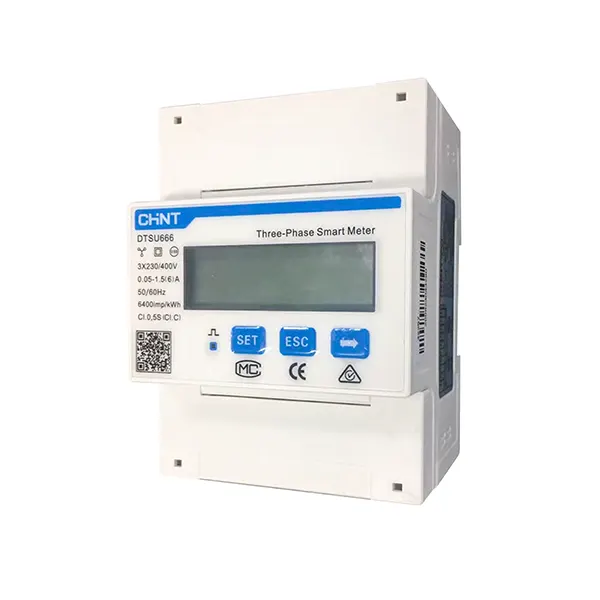

SmartMeter
| No. | Produkt | Beschreibung |
|---|---|---|
| 901.00000048-1 | Smart Meter (3-phase) |
3-phase Smart Meter Chint DTSU666 (external CT's required) for HYD 5...20KTL-3PH, ME 5...20KTL-3PH Electricity meter DTSU666 3X230/400V 0.05-1.5(6)A 50/60Hz 6400imp/kWh CI.0, 5S(CI.C) Preset: current ratio 40:1,baud rate 9600,communication address 1 (scope of supply in HYD 3PH inverter) |
| 901.00000058-0 | Smart Meter (3-phase) | 3-phase Smart Meter Chint DTSU666 (direct connection up to 80A) for HYD 3PH inverters |
| 901.00000057-0 | Smart Meter (1-phase) |
1-phase Smart Meter Chint DDSU666 (CT connection) 230V*/100mA 800imp/kWh) (current ratio 2000:1, baud rate 9600,communication address 1). Needed current Transformer: LCTA9CC 200A/100mA |
| 901 00000054-0 | Smart Meter (1-phase) | 1-phase Smart Meter Chint DDSU666 (direct connection up to 80A) |

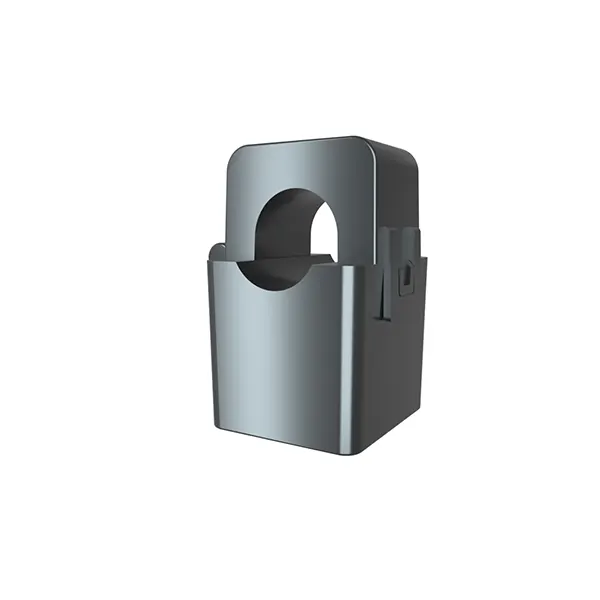

Current Transformers
| No. | Produkt | Beschreibung |
|---|---|---|
| 014.01200011-0 | CT Kit 300A (for 3-phase HYD/ME inverters) |
1 x current transformer for: HYD 5…20KTL-3PH ME 5…20KTL-3PH 300A/100mA (Ratio: 1:3000) for direct connection at the inverter CT input. 3 pieces needed for inverter |
| 014.01200015-0 | CT Kit 120A (for 1-phase SOFAR/HYD/ME inverters) |
- HYD 3...6KTL-EP / -ES series (1 piece needed) - ME 3000-SP (2 pieces needed for 1-phase grid / 4 pieces needed for 3-phase grid) - and all SOFAR 1-phase inverter (1 piece needed) for direct connection at the inverter CT input. 120A/40mA (Ratio: 1:3000) Single cable diameter <15 mm or <80 mm² Class 0 5/Φ16 |
| 014.01200008-0 | CT Kit 200A (for DTSU SmartMeter) |
1 current transformer 200A/5A to connect to 3-phase SmartMeter Chint DTSU666 1,5(6)A Type: HY94C5-200, current: 200A/5A 2KV, 30~75°C,Φ24 |

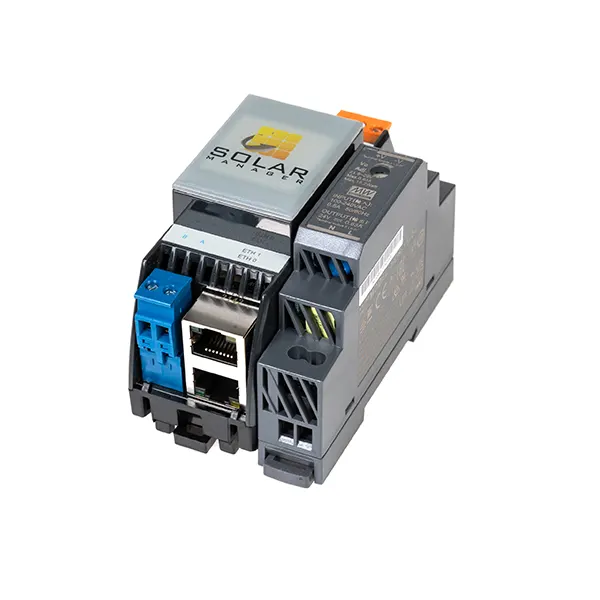

SOLARMANAGER
| No. | Produkt | Beschreibung |
|---|---|---|
| 7629999757639 | Solar Manager Connect - Gateway | Solar Manager Connect - Gateway für Hutschienenmontage RS485 |

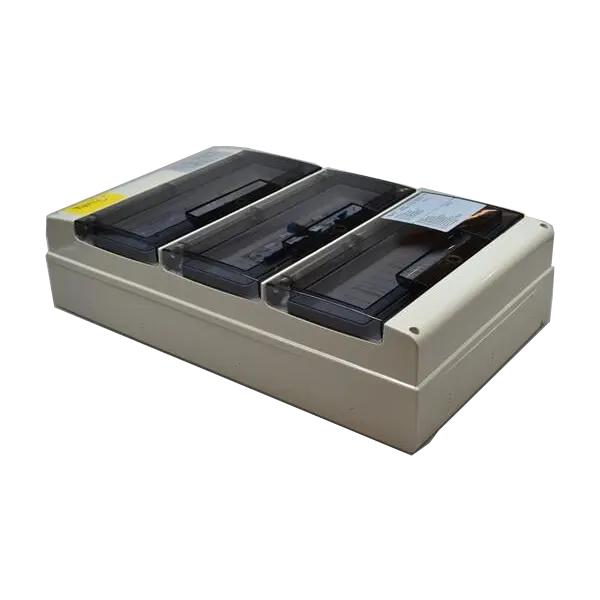

TARU Umschaltbox
| No. | Produkt | Beschreibung |
|---|---|---|
| 94045 | Umschaltbox EPS |
PV AC USW32A N-0-NOT N-PE FI-A 40A 300mA Umschaltbox für Sofarsolar Hybrid- Wechselrichter HYD20KTL-3PH |
| 94046 | Umschaltbox vollautomatisch |
PV AC USW63A N-PE FI-A 40A 300mA Umschaltbox für Sofarsolar Hybrid- Wechselrichter |

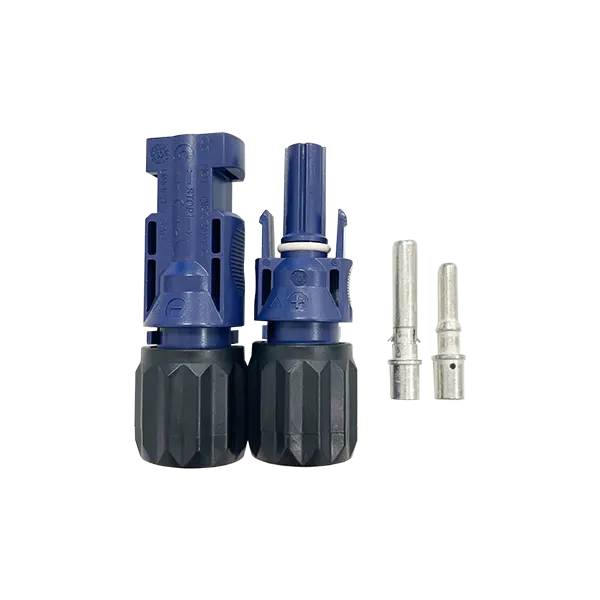

Batterie Stecker "DEVALAN"
| No. | Produkt | Beschreibung |
|---|---|---|
| 020.38433641 | Battery connectors 1 pair |
Batteriestecker Set bestehend aus je 1 +/- Steckergehäusen und Kontaktpins. Hersteller Artikelnummern: 020.00200038-1 / 020.00200043-1 020.00200036-1 / 020.00200041-1 |
